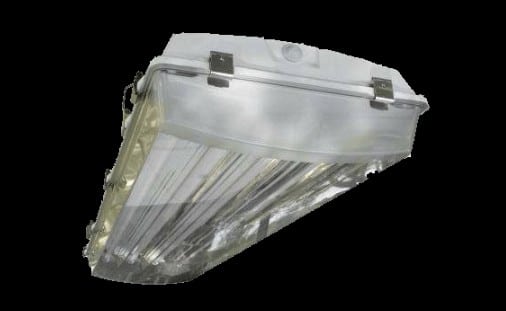

Equiwet 100

The EquiWet 100 Fixture is a wet location high bay fixture that has passed a 1500 PSI hose down test. This fixture is NSF rated for splash zone applications. It has a NEMA 4X rating and is perfect for Outdoor applications. The fixture comes with a water clear lens, stainless steel latches and hanging hardware.

SPECIFICATIONS

  • Reflector Material: Roll Formed 95% Enhanced Anodized Aluminum
  • Reflector Size: 2 in. x .5 in. 6 lamp, 3 in. x 1.75 in. 4 lamp
  • Lamp Types: T5HO and T8
  • Lens Options: Polycarbonate, Acrylic
  • Paint: None
  • Latches: 8 stainless steel
  • Height: 5.95 in.
  • Length: 51.81 in.
  • Width: 14.61 in.
  • 1/2 in. KOs: End panels, each end on top
  • Housing Ratings: UL Wet, NEMA 4x, IP67, RoHS
  • Temp Rating: 4 Lamp T5HO – 40C, 6 Lamp T8 – 40C, 6 Lamp T5HO – 25C
Download PDF
